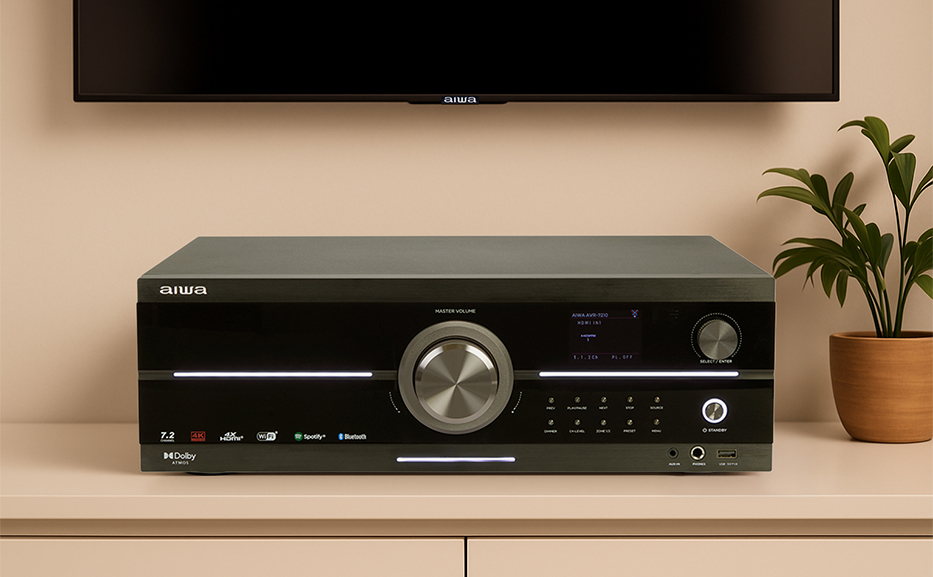

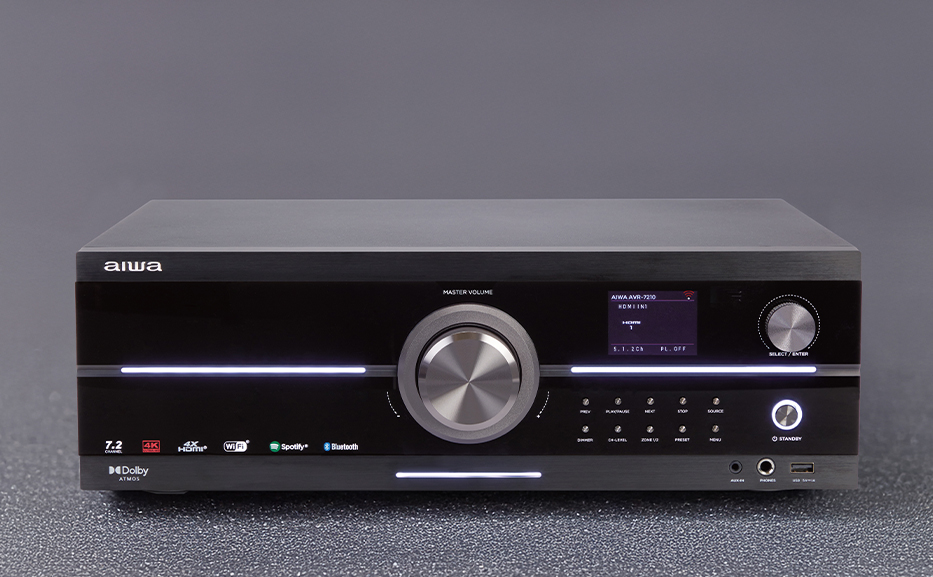

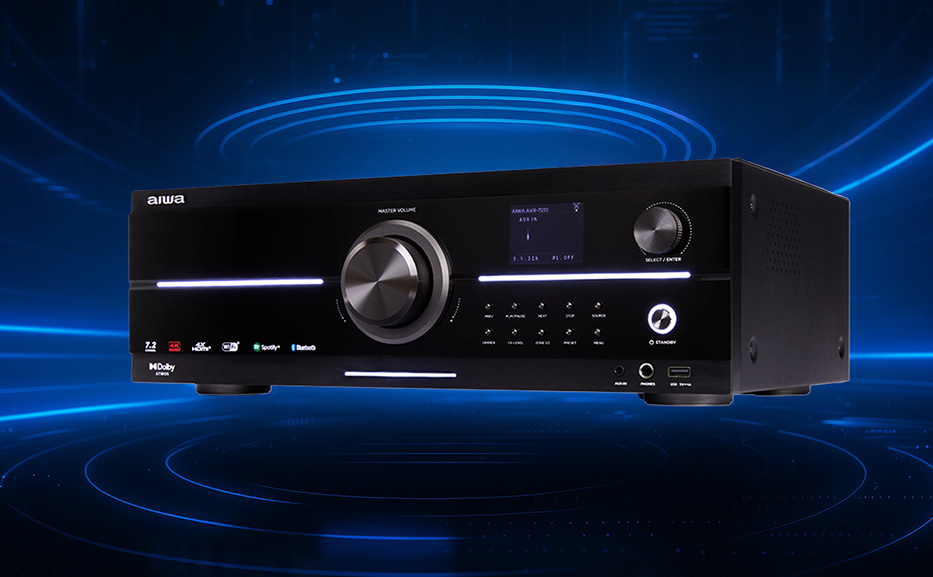

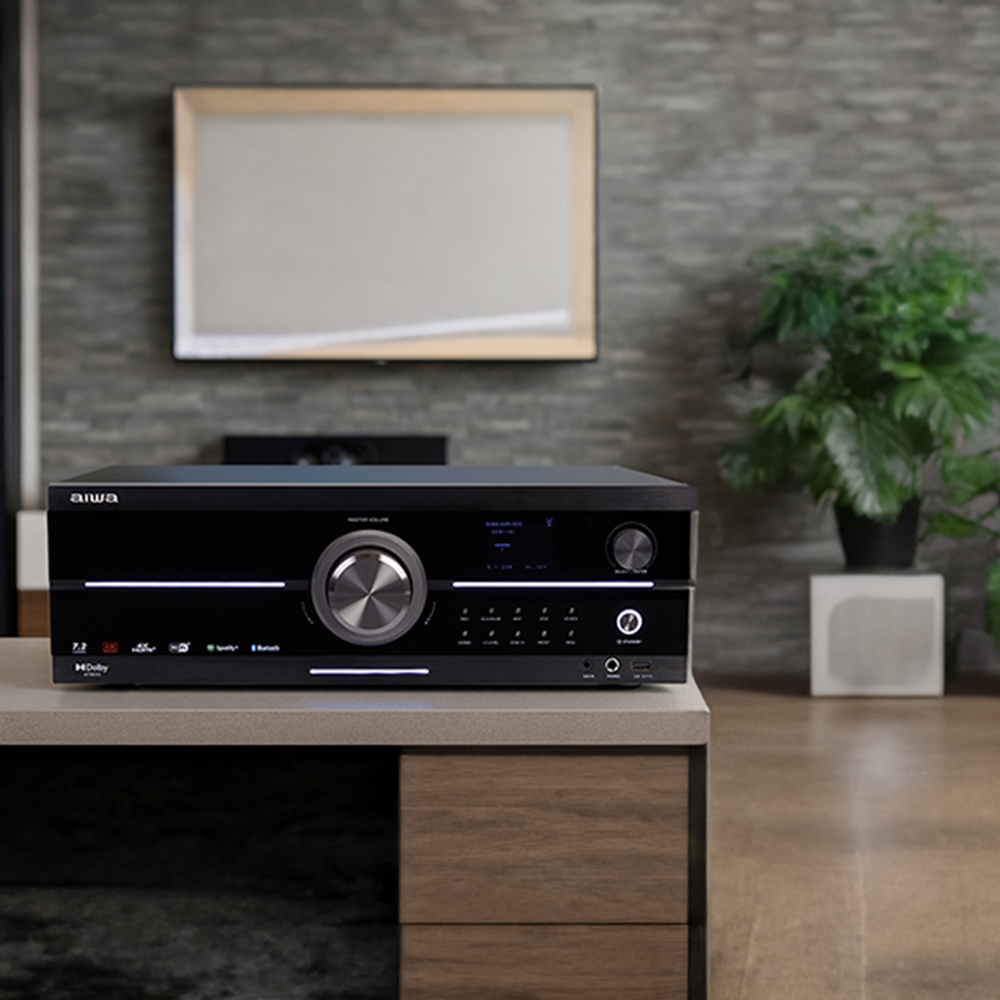

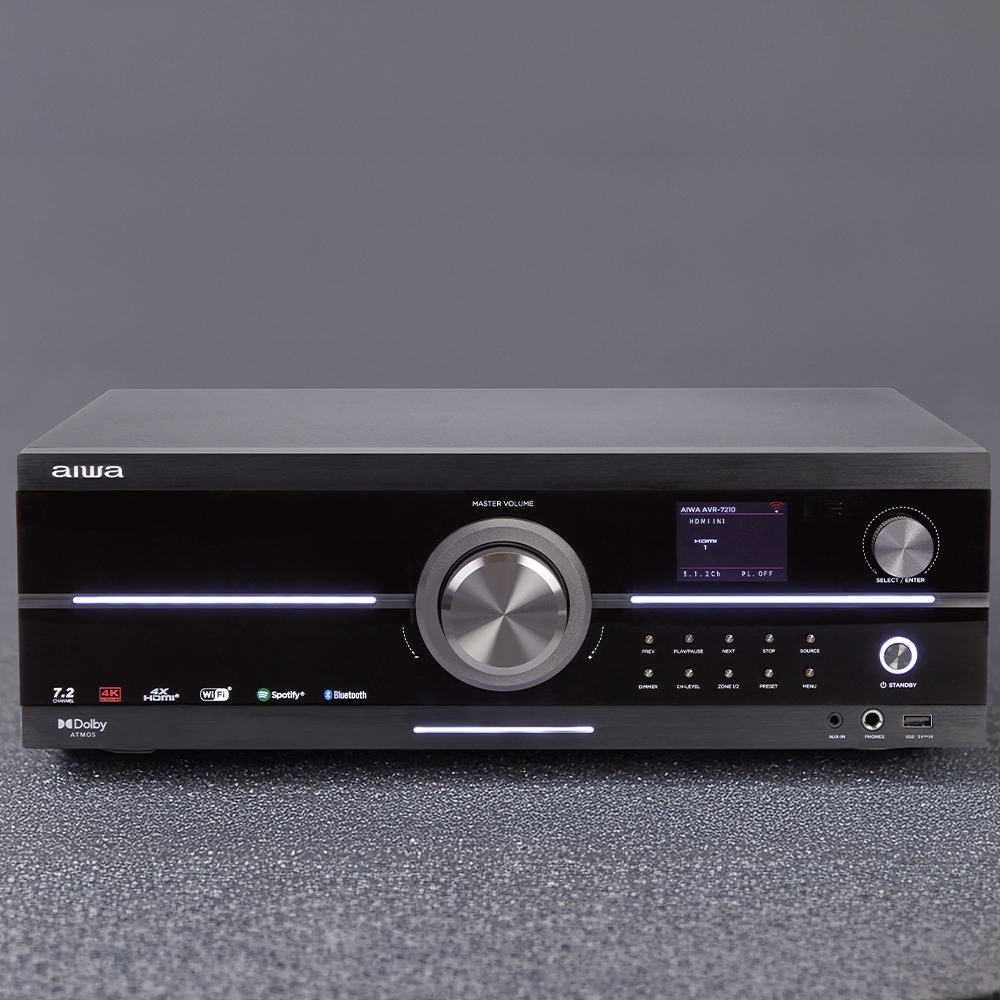

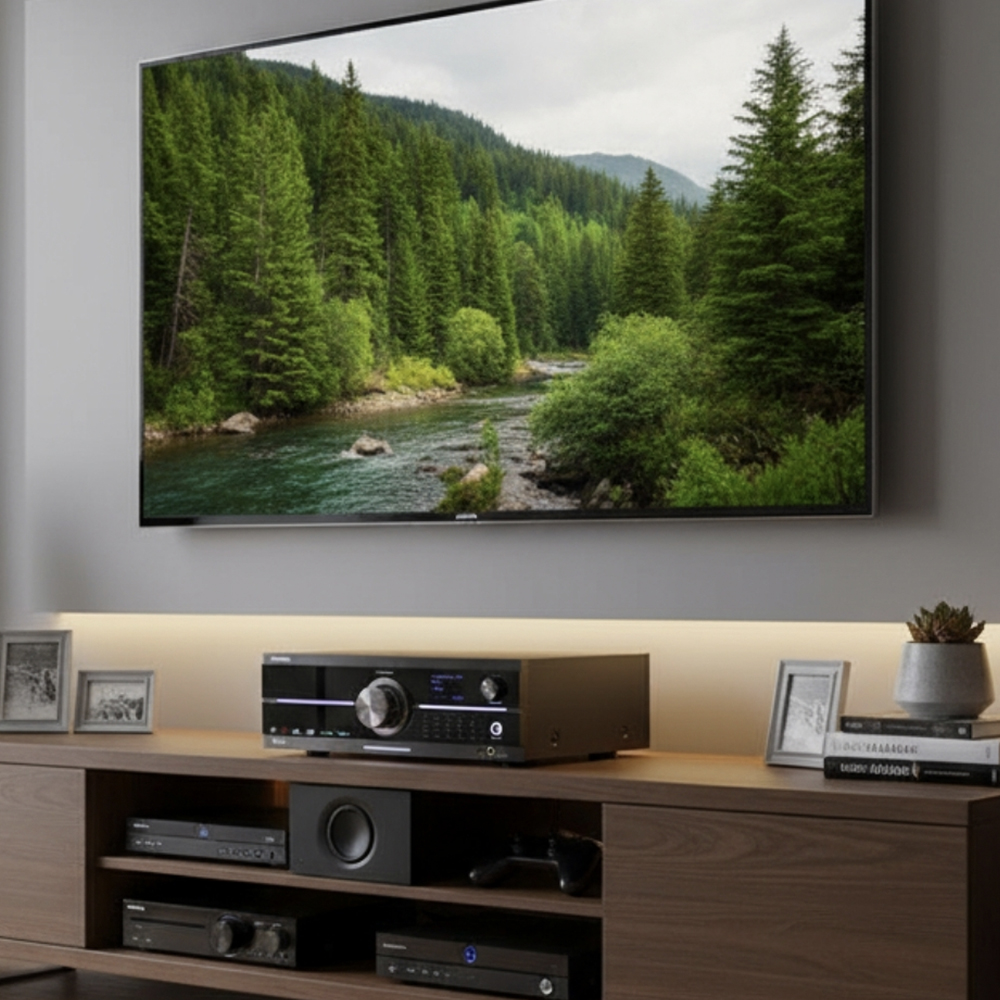

AUDIO VIDEO RECEIVER 7.2. CHANNEL
MULTIPLE FUNCTIONS
FULL & EXCLUSIVE AIWA’S EXPERIENCE
PRODUCT SPECIFICATIONS
General Specifications
7.2CH Audio Video Receiver with Built-in Amplifier
No. of Channels: 7.2 CH, Sub : Pre-out
180 W per channel at 4 Ohms, 1 kHz, 1% THD, 2-channel driven
130 W per channel at 6 Ohms, 1 kHz, 1% THD, 2-channel driven
110 W per channel at 8 Ohms, 1 kHz, 1% THD, 2-channel driven
Total RMS Power Output: 130W x 7 = 910W AT 6 Ohms, setting up the DRC (Dynamic Range Compression) in Settings
Compatible with Apple AirPlay 2
FM(75Ω) Tuner ,Preset:30 / UHD 4K pass-through via HDMI
4K/60 Hz, HDR// HDMI e ARC & CEC Support
HDCP Compatible (V2.2 or above) / Bluetooth Streaming (V5.2 or above)
TFT Display (2.4″ TFT) with Dimmer function
Dolby-Atmos Supported / Wi-Fi Compatible supporting Spotify (Frontier Auria solution).
INPUTS:4 x HDMI In / Optical in / Coaxial in
INPUTS: 2 x Composite In (Video) , 2 x RCA In
INPUTS: Line in, USB Playback (MP3 format)
OUTPUTS: 2 x HDMI Out with e ARC, Composite Out (Video )
OUTPUTS: Earphone 6.5, 2 x Subwoofer Pre-out
Speaker Terminal: Plated Banana & Screw
Power Supply 200V or 240V
Dimensions
Weight: 5.87kg
Dimensions: 435x145x350mm

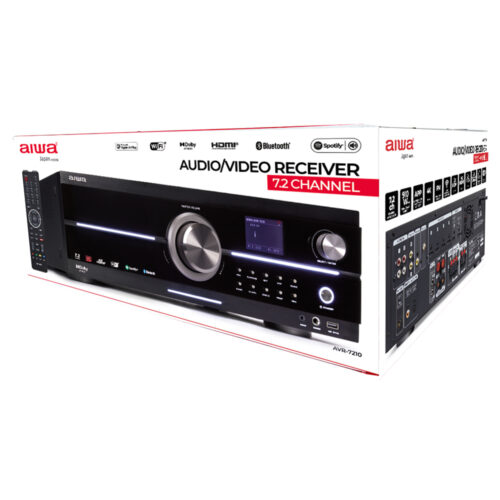

What’s in the box?
AVR-7210
Remote control
FM Antenna
User Manual
Social Media Card
