Aiwa AMR-200DAB/BK
High-Power Stereo Amplifier
A powerful 200W RMS stereo amplifier designed for high-quality Hi-Fi listening. Featuring FET amplification, a 24-bit/192 kHz Wolfson DAC, Bluetooth 5.0 transmitter and receiver, DAB+/FM radio, Phono input and extensive analogue and digital connectivity, it combines classic audio sources with modern wireless streaming in one versatile system.
200W
Bluetooth
BT Transmitter & Receiver
DAB +
FM RDS
Play your MP3
Headphone output
RCA Audio Input/Output
Quad Speakers
REC Out / Line Out
Loudness + EQ Bypass
Bass and Treble
Dot Matrix Display
White ambient light
Full Audio
Mic Connection
Optical Digital Input
Recording Function
499,99€
In stock
POWER. PRECISION. VERSATILITY.
Rediscover Your Music
WIRELESS.
BOTH WAYS.
via Bluetooth 5.0 or transmit audio wirelessly
to compatible Bluetooth devices.
HIGH-RES
AUDIO
accurate digital sound reproduction.
Product Specifications
General Specifications
Output power = 200W = 2x 100W RMSÂ @4 Ohms, 0.1% THD.
Phono Input with Built-In Pre-Amp and RIAA EQ, with Phono Ground (GND) Terminal Connection.
Full Function Remote Controller in Metallic Finishing with Silicone Rubber Buttons, including MP3/BT Playback controls.

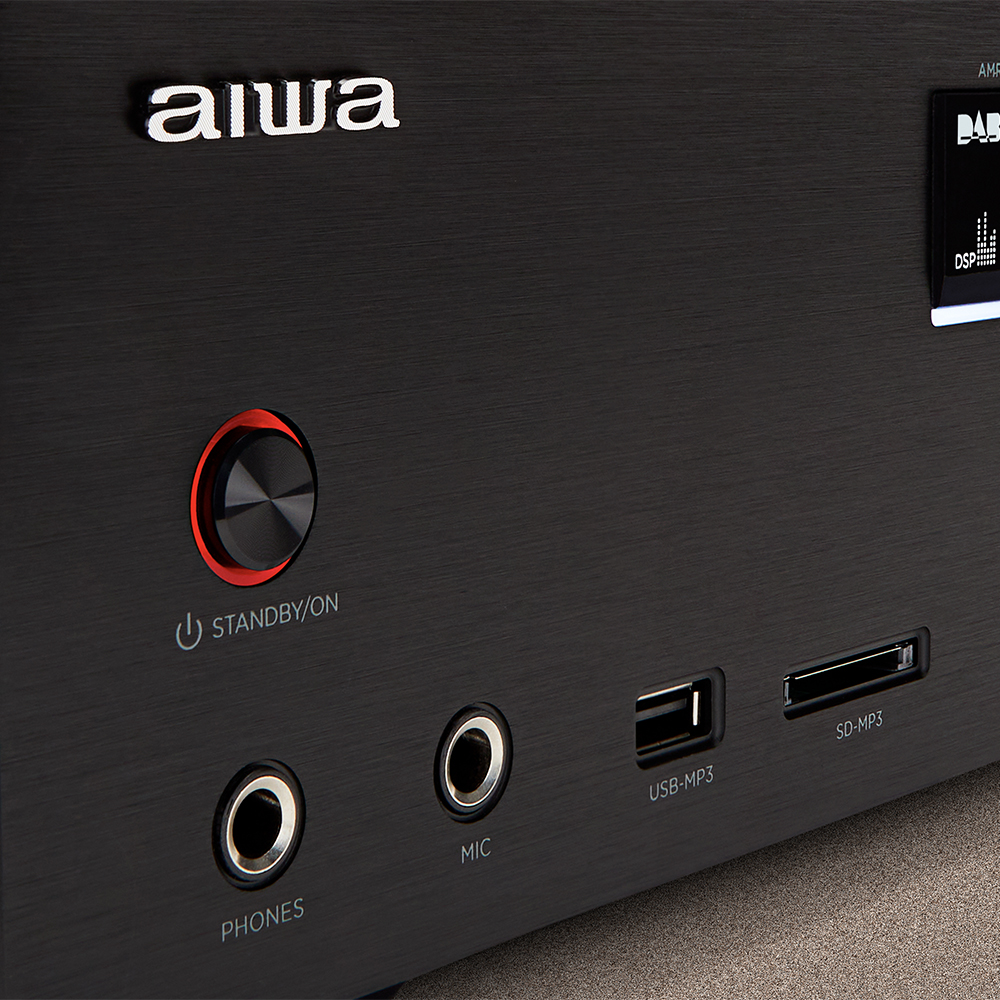

6.35mm (1/4 inch) Stereo Headphone-Output Jack built-in.
6.35mm (1/4 inch) Microphone-Input Jack built-in.
Gold Plated A and B Speaker Terminals.
Impedance= A/B speaker : 4-8 ohm，A+B speaker : 8-16 ohm.
High Quality FET Power Amplifier circuit (S/N for AUX–In > 100dB, S/N for USB+SD/MP3 and Phono–In >83dB)
Wolfson 192 kHz/24-bit D/A Converter.
Treble (10KHz) & Bass (100Hz) independant adjustments +/- 10dB.
Frequency Response 20Hz – 20KHz +/- 0.5dB.
Channel separation >80dB@1kHz.
7 Analog audio inputs : PHONO (MM), CD/SACD, AUX-IN 1, AUX-IN 2, AUX-IN 3, MIC, BT.
Rec-Out/Line-Out Analog Stereo Output Included.
LOUDNESS Control button for Audio EQ Enhancement at Night-time.
DAB+ Digital Audio Broadcast Receiver Built-In.
FM-RDS Radio Tuner Built-In.
USB-port + SD-Card slot (in front panel) for MP3 playback, up to 128GB memory readable, with Scrolling id3-Tag song info on display.
ANTI-VIBRATION Riser Feet with Rubber (Silicone) Pads
Digital Rotary Aluminium Controller for Volume/Treble/Bass/Balance/BT-Volume Control with digital readout.
Bluetooth v5.0 Receiver Built-In with Scrolling Media Info on dot-matrix display and 10M wireless range.
Bluetooth v5.0 Transmitter to Stream Wireless Audio to any Bluetooth Compatible Mobile Device and 10M wireless range
Fully Alphanumeric 16 char x 2 lines dot matrix display with White-LED backlighting and Tinted Prism Lens
Anodized Aluminium front panel (Brushed Hairline Finishing).
White LED Ambient Light Bar (3D PRISM type) under the display on frontal panel.
2 Digital audio inputs: Optical & Coaxial.
Direct button for EQ Bypass (Direct Power Amplifier Output).
QUAD Speaker Connections (with Selector for 2x Stereo Speakers A and B).
Built In DUAL Power Supplies ( SMPS for Standby Mode, Toroidal Transformer for Main Operation).
Hardware ON/OFF Toggle Master Power Switch included.
Extra Long AC-Power Cord : 2M Length.
Dimensions
Dimensions: 43 x 10 x 29.2 cm.
Weight: 7.2 kg
What’s in the box?
AMR-200DAB Stereo Amplifier
Remote Control
2 × AIWA AAA Alkaline Batteries
Tuner Antenna Wire
Screw-Mount F-Type Connector
User Manual
